Precision Motion Control: DieQua Servo Gearheads
DieQua offers one of the industry's most comprehensive ranges of servo gearheads, providing tailored solutions for everything from high-dynamic automation to cost-sensitive positioning. Our lineup is categorized by performa...
DieQua offers one of the industry's most comprehensive ranges of servo gearheads, providing tailored solutions for everything from high-dynamic automation to cost-sensitive positioning. Our lineup is categorized by performance requirements to ensure an optimal match for your specific motor and application.

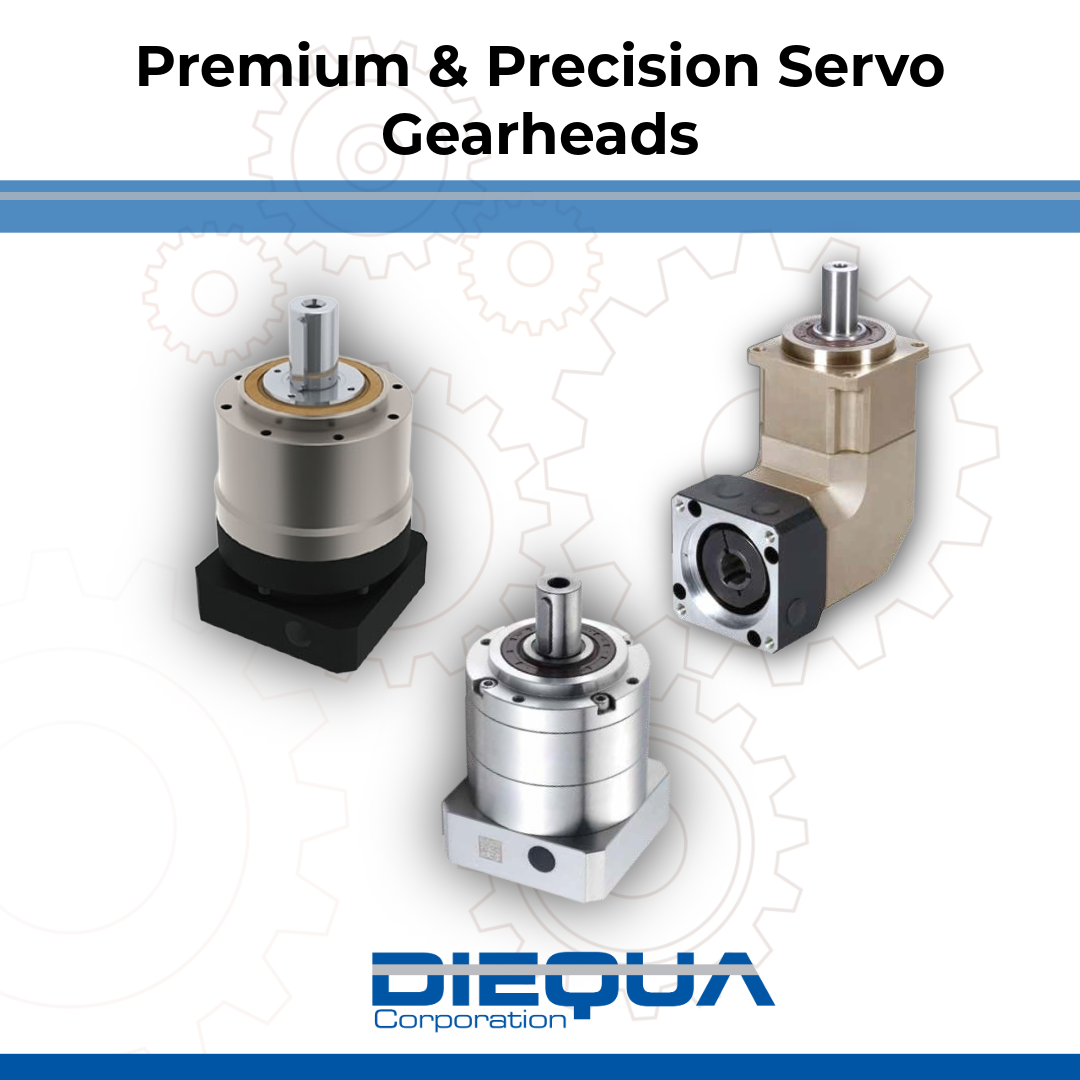

Premium & Precision Planetary Series:
These gearheads are engineered for high-end motion control where accuracy, rigidity, and service life are critical.
PHL & PUL Series (Premium): Featuring caged helical planetary gears, these units offer the highest torque capacity and quietest operation. The PUL series is specifically designed to handle extreme radial loads (up to 27,800 N).
PGC & PGL Series (Precision): Available in round or square mounting flanges, these series utilize precision-class spur gears to achieve backlash as low as <3 arcmin.
PL2FS Series (Ultimate Precision): The ServoFoxx inline series is the benchmark for highly dynamic applications, offering 18 standard ratios and peak torque capacity up to 1,600 Nm.
Standard & Economy Solutions
Designed for reliable performance in general automation and basic motion profiles.
PNS Series (Standard): Our top-selling planetary gearhead. It features a round mounting flange and caged standard-class gears, balancing heavy-duty capacity with versatile mounting.
PBC & PBE Series (Economy): Ideal for applications where cost is a major consideration without sacrificing reliability. These provide solid performance in compact, square, or round flange housings.
PGW Series (Linear Integration): Specifically designed to bolt directly onto linear actuator belt drive systems for a seamless, rigid connection.
Specialized Servo Configurations
Right Angle Servo Gearheads: Available in planetary, spiral bevel, and helical-bevel designs (such as the SKP2FS and FS2 series). These units provide maximum torque in the smallest possible footprint for space-constrained layouts.
SGC Series (Stainless Steel): Engineered for washdown and sterile environments, providing corrosion-proof precision for food, pharma, and chemical processing.
Need help selecting the right ratio or frame size?
Our engineering team can help you compare the technical specifications of our Servo Gearheads to find the perfect fit for your torque and backlash requirements.
