Capacitive measuring system for industrial applications
61x0/IP capacitive displacement measuring system is suitable for inline quality
assurance of production processes, and for control of plant and machinery.
Protected to IP68, this measuring system is therefore suitable for many
industrial measurement tasks. Fluctuating temperatures and magnetic fields are
no match for this capacitive system.

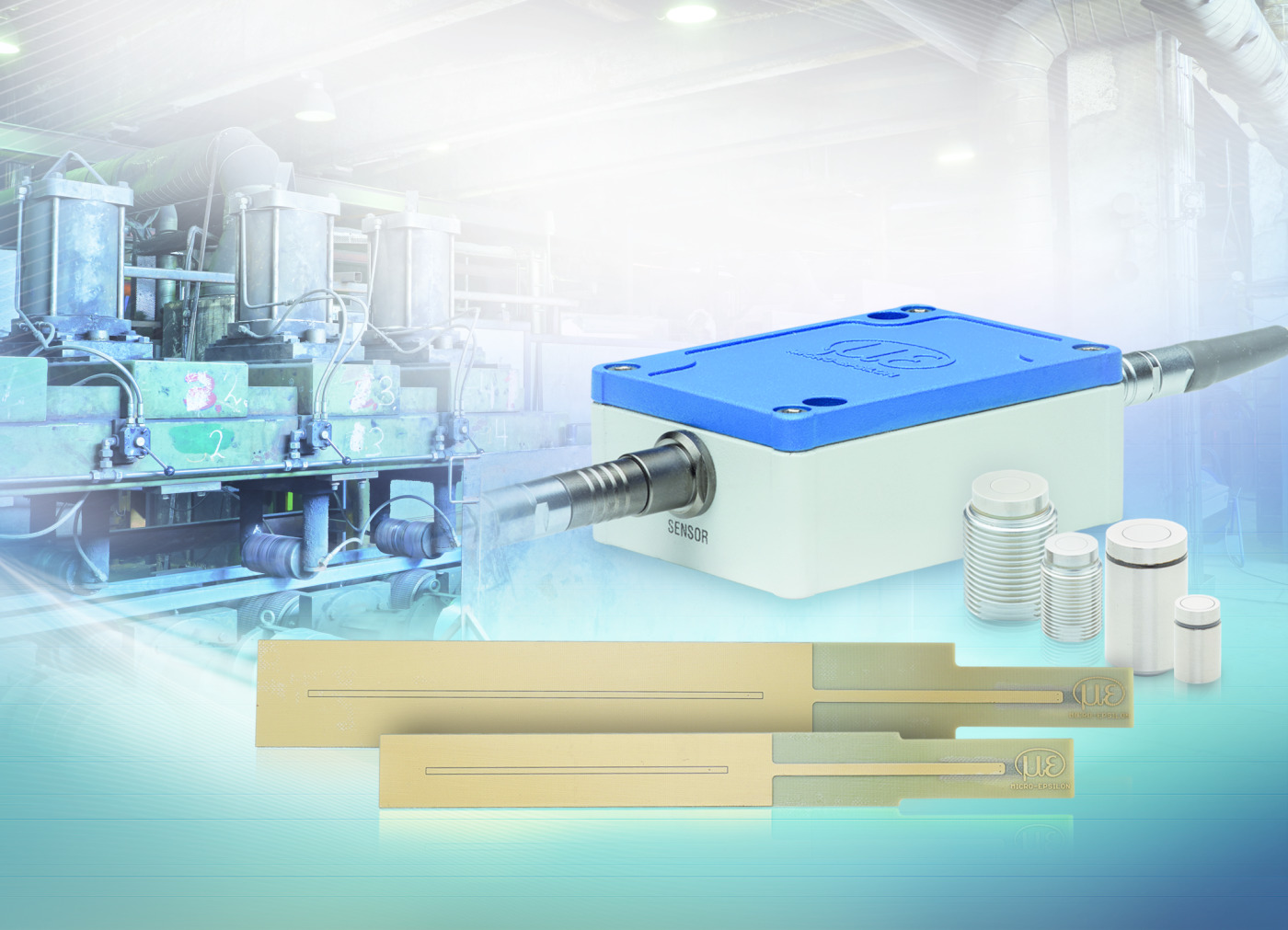

The new capaNCDT
61x0/IP capacitive measuring system is specially designed for industrial
measurement tasks where high precision is required. It detects parameters such
as displacement, distance, deflection, expansion, and deformation of conductive
targets. The capaNCDT 61x0/IP includes a sensor, sensor cable and controller.
Calibrated at the factory, the system is immediately ready for use with no on
site calibration necessary. Even after replacing the sensors, no recalibration
is required. Data output is via current, voltage or digital RS485 interface.
The capaNCDT 61x0/IP is specially tailored to the requirements of industrial environments. Classified to IP68, it is ideally suited to industrial measurement applications. Its aluminum die-cast housing protects the controller from dust and humidity. As the sensor cable is extremely robust, it...
The capaNCDT 61x0/IP
is specially tailored to the requirements of industrial environments.
Classified to IP68, it is ideally suited to industrial measurement
applications. Its aluminum die-cast housing protects the controller from dust
and humidity. As the sensor cable is extremely robust, it provides resistance
to treading and high temperatures. Designed for large distances, the cable can
be used up to 8 m.
More than 15 different sensor models are available for different measurement tasks. Flat sensors, cylindrical sensors and models with thread are the three basic sensor types from which the customer can choose depending on the respective installation scenario.
Published by Micro-Epsilon USA on Dec 03, 2018
